Tier 1 451-35-23 carbon BMX rims are sold as a matched two-rim set. A Disc Brake Set includes two rims with no rim-brake surface. A V Brake Set includes one front rim with no brake surface and one rear rim with the V-brake surface.
Choose the exact brake-set and logo-color combination below. Current on-hand quantity is shown in the dropdown.

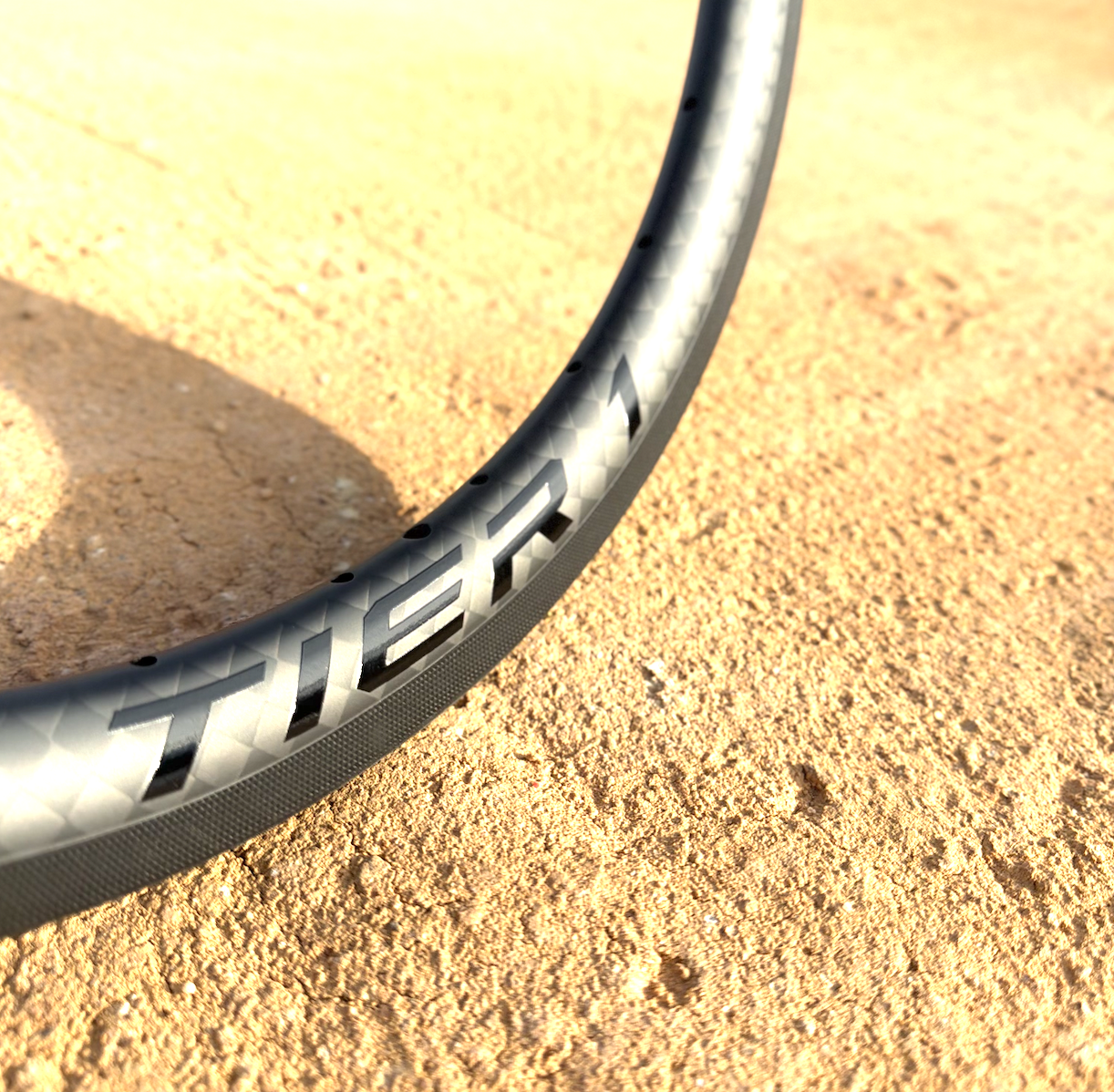

Tier 1 Components Carbon Racing Rims are engineered for riders who demand exceptional stiffness, low rotational weight, and race-proven durability. Manufactured from premium Toray T700 carbon fiber using advanced molding techniques, every rim is designed to deliver consistent performance on the gate, through corners, and across the finish line.
Whether you are chasing your first win or competing at the highest level, Tier 1 rims are built to perform under the demands of modern BMX racing.
Every Tier 1 carbon rim begins with genuine Toray T700 carbon fiber, selected for its exceptional balance of strength, stiffness, impact resistance, and lightweight performance.
Our manufacturing process creates a rim that delivers responsive acceleration, precise handling, and excellent power transfer while maintaining the durability required for BMX racing.
The Tier 1 rim profile has been engineered to maximize strength while minimizing weight.
Its 38 mm deep-section design increases lateral stiffness for improved cornering stability and efficient power transfer while maintaining a lightweight race-focused platform.
The internal structure is optimized to distribute spoke loads evenly across the rim for increased durability.
Tier 1 Components offers multiple carbon weave and finish options depending on product configuration.
Depending on the model and selected configuration, Tier 1 carbon rims are available for either rim-brake or disc-brake use.
Models equipped with a basalt brake track provide improved heat resistance, consistent braking performance, and enhanced durability during prolonged braking.
Every rim is manufactured using precision molding techniques and strict quality-control standards.
| Material | Premium Toray T700 Carbon Fiber |
| Rim Type | Clincher |
| Current Model Size | 20" (BSD 451) |
| Other Available Sizes | Additional BMX rim sizes are available depending on model |
| Model | 451-35-23 |
| Rim Width | 21 mm |
| Rim Depth | 38 mm |
| ERD | 394 mm |
| Valve Compatibility | Presta or Schrader, based on selected drilling |
| Spoke Count | 28H on this model; additional spoke drillings may be available by special order |
| Maximum Tire Pressure | 130 PSI (8.97 Bar) |
| Approximate Weight | 320 g ±15 g |
Tier 1 Components offers a range of custom and OEM configuration options, subject to availability, minimum quantities, pricing, and production lead times.
| Wheel Size | 20" / BSD 451 |
| Model | 451-35-23 |
| Rim Profile | 21 mm Wide × 38 mm Deep |
| ERD | 394 mm |
| Hole Count | 28H |
| Valve | Presta or Schrader, based on selected drilling |
| Approximate Weight | 320 g ±15 g |
| Material | Toray T700 Carbon Fiber |
| Brake Options | Disc Brake Set or V Brake Set |
| Maximum Tire Pressure | 130 PSI / 8.97 Bar |
| Price | $629.98 |
